ECHOMAP™ Plus 45cv

Part Number 010-01887-30

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

A Great Addition to Any Fishing or Boating Trip

Bright, sunlight-readable 4.3” combo
Built-in support for Garmin CHIRP traditional sonar plus CHIRP ClearVü™ scanning sonar (transducer sold separately)
Preloaded worldwide basemap; compatible with BlueChart® g2 HD and BlueChart® g2 Vision® HD¹
Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish
Share waypoints and routes with other ECHOMAP™ or STRIKER™ units

This compact combo has lots of built-in benefits. Easy-to-install and even easier to use, it has a bright 4.3” display that is easy to read on a sunny day on the water. It features built-in support for Garmin CHIRP traditional sonar that delivers remarkable target separation and CHIRP ClearVü scanning sonar for nearly photographic images of what’s below the boat. Preloaded worldwide basemap and BlueChart g2 HD and BlueChart g2 Vision HD compatibility. Plus, it has Quickdraw Contours mapping software to instantly create personalized fishing maps on-screen with 1’ contours as you fish. You own these maps. They are yours to keep private or share with the Quickdraw Community on Garmin Connect™. Plus, you can share waypoints and routes with other ECHOMAP or STRIKER units. It also features a quick-release mount allowing you to quickly remove your device from power and mount.

The Garmin CHIRP Difference

The built-in sonar capabilities of ECHOMAP Plus 45cv include our CHIRP traditional sonar, one of the most sophisticated sonar technologies available for the fishing and boating public. CHIRP traditional sonar provides amazingly clear target separation and definition, because it puts even more energy onto the target than traditional sonar. It also provides traditional sonar support for Minn Kota® and MotorGuide®trolling motors with integrated transducers.

Clear Scanning Sonar Images

Garmin CHIRP ClearVü scanning sonar gives you a nearly photographic image of what’s below your boat. You clearly see structure, submerged objects and fish.

Quickdraw Contours to Create Your Own Maps

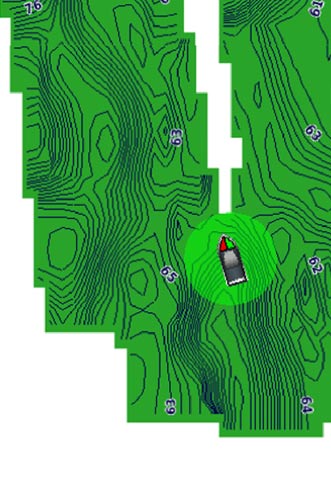

Instantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect.

Upgrade to Our Best Maps on the Water

Step up to BlueChart g2 HD or BlueChart g2 Vision HD, which adds Auto Guidance² and other great features. A single microSD™ card slot provides expandable memory for accessory map purchases.

Take Your ECHOMAP Plus with You

When you’re off the water, it’s easy to keep your ECHOMAP Plus combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit because the cords plug directly into the mount. This allows you to quickly install and remove your ECHOMAP Plus from power and the mount.

¹This model does not support 3-D mapping views on BlueChart g2 Vision HD
²Auto Guidance is for planning purposes only and does not replace safe navigation operations.

General
Physical dimensions	4.0" x 6.6" x 1.8" (10.2 x 16.8 x 4.6 cm)
Weight	0.8 lbs (0.4 kg)
Water rating	IPX7
Display type	WQVGA display
Display size	2.1" x 3.7"; 4.3" diagonal
	(5.4 x 9.5 cm; 10.5 cm diagonal)
Display resolution	480 x 272 pixels
Power consumption	5W
Antenna	Internal_or_external_over_NMEA_0183
Mounting options	Bail or flush
Receiver	5 Hz
Garmin Marine Network™ ports

Maps & Memory
Accepts data cards	1 microSD™ card; 32 GB maximum card size
Waypoints	5,000
Routes	100
Track log	50,000 points; 50 saved tracks
Preloaded maps

Outdoor Recreation Features
Tide tables

Chartplotter Features
Garmin Sonar compatible
Supports AIS (tracks target ships position)
Supports DSC (displays position data from DSC-capable VHF radio)

Sonar Features & Specifications
Dual-frequency (50/200 kHz) sonar capable
Dual-beam (77/200 kHz) sonar capable
Frequencies supported	CHIRP (low, mid, high)
	Traditional: 50/77/83/200 kHz
	ClearVü: 260/455/800 kHz
Transmit power	500 W (RMS) / 4,000 W (peak to peak)
CHIRP sonar technology	(Built-in)
ClearVü	with CHIRP (built-in)
SideVü
Maximum depth	2,300 ft @ 77 kHz, freshwater
	1,100 ft @ 77 kHz, saltwater
	(depth capacity is dependent on water bottom type and other water conditions)
Bottom lock (shows return from the bottom up)
Water temperature log and graph
Sonar recording
Sonar history rewind

Connections
Transducer pin numbers	4
NMEA 0183 input ports	1
NMEA 0183 output ports	1
Video input ports
Video output ports
Wireless connectivity

ECHOMAP Plus 45cv with worldwide basemap
Power/data cable
Tilt/swivel mount with quick release cradle
8-pin transducer to 4-pin sounder adapter cable
