GHP™ 20 Marine Autopilot System for Steer-by-wire

Discontinued

GHP™ 20 Marine Autopilot System for Steer-by-wire

Part Number 010-00705-55

BUY NOW

Feature
Specs
In The Box
Update
Accessories
Compatible Devices

Auto-guided Navigation for Yanmar, Teleflex and ZF Users

For Yanmar® Electric Power Steering for the JC10 Joystick system, Teleflex® Optimus™ systems and ZF® 2800 Pod Drive steering systems.
Patented Shadow Drive™ technology keeps you in control even when relying upon autopilot
Controlled using a GHC™ helm control unit and is compatible with the GHC remote and quatix™
Up to 3 GHC controllers can be interfaced with a single GHP 10
NMEA 2000® connectivity

The GHP 20 for Steer-by-wire brings our leading-edge marine autopilot technology to vessels with select steer-by-wire control systems, including Yanmar Electric Power Steering for the JC10 Joystick system, Teleflex Optimus systems and ZF 2800 Pod Drive steering systems.

Experience Advanced Autopilot Technology

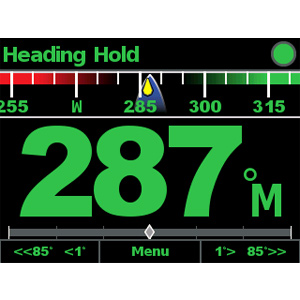

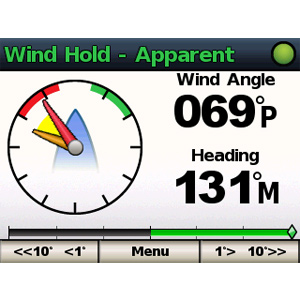

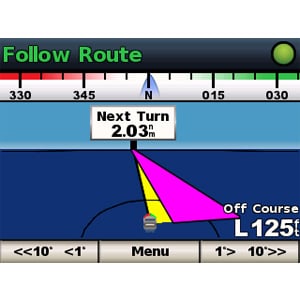

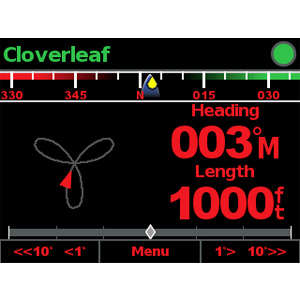

With a GHP 20 for steer-by-wire aboard your boat, you no longer need to be tied to your helm. In addition to holding its course in virtually all weather and wind conditions, the system can perform a variety of pre-programmed trolling and search procedures. Plus, with a compatible Garmin network chartplotter and BlueChart® g2 Vision® charts, you gain optional features like Auto Guidance, which automatically steers GPS routes.

Stay in Control with Shadow Drive™ Technology

The GHP 20 steer-by-wire’s patented Shadow Drive technology gives you the security of knowing you maintain control even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.

Integrate with Compatible Yanmar Marine, Teleflex and ZF Steering Systems

On vessels with compatible Yanmar, Teleflex and ZF steer-by-wire systems, the GHP 20 steer-by-wire autopilot provides unmatched autopilot performance. It works seamlessly with joystick steering/shift/throttle control systems to negotiate the boat forward, backwards, diagonally, sideways or on its axis. Dynamic gain adjustments based on tachometer information means the GHP 20 steer-by-wire offers optimal performance at all speeds.

Connect to Networked Devices

The GHP 20 for steer-by-wire is operated using up to 3 GHC™ control units. The GHC communicates with the autopilot system via your NMEA 2000® network, so autopilot heading data can be shared easily with other devices. This enables MARPA and chart overlay when connected to a Garmin chartplotter. An optional handheld wireless remote control is also available, however for the highest level of convenience, control the GHC using quatix™, the world’s first marine GPS navigation watch featuring ANT™ wireless technology.

CCU Specifications

Dimensions: 3 19/32 in. diameter (91.4 mm)
Weight: 5.6 oz. (159 g)
Temperature range: From 5°F to 131°F (from -15°C to 55°C)
Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
CCU cable length: 9.5 ft. (3 m)
NMEA 2000 power input: 9-16V
NMEA 2000 LEN: 3 (150 mA)

GHC 20 Specifications

Buzzer/Alarm Specifications

Dimensions (L × Diameter): 29/32 in. × 1 in. (23 mm × 25 mm)
Weight: 2.4 oz. (68 g)
Temperature range: from 5°F to 131°F (from -15°C to 55°C)
Cable length: 10 ft. (3.0 m)

GHC™ helm control unit
Course Computer Unit (CCU)
CCU cable
Buzzer
2 NMEA 2000® drop cables (2 m)
NMEA 2000 power cable
3 NMEA 2000 T-connectors
Male and female terminators
Documentation
