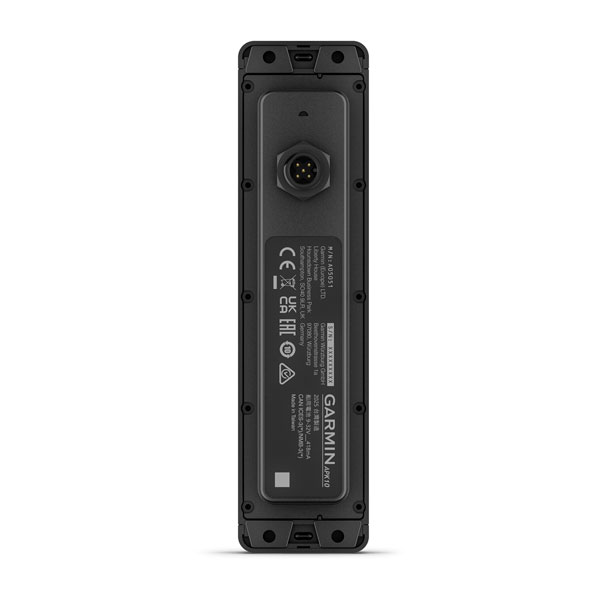

APK 10 Autopilot Keypad

Vertical

Part Number 010-03197-01

BUY NOW

Feature
Specs
In The Box
Update
Accessories

GAIN PRECISE CONTROL OF YOUR AUTOPILOT

Get easy-to-use control of your Reactor 40 autopilot, and put simple, intuitive knob and button activation, heading changes and more at your fingertips.

CONTROL IN ALL SEA CONDITIONS

ROTARY KNOB

The LED-encircled knob provides precise heading control and colored reference of autopilot status.

AUTOPILOT BUTTONS

Dedicated engage and standby buttons make starting and stopping your autopilot easy.

MULTIPURPOSE BUTTONS

Add more autopilot control functions based on your vessel type and setup preferences.

SIMPLE INSTALLATION

Connect to your NMEA 2000 network with a single port and cable for integration and power.

COMPACT DESIGN

A low-profile design matches the height of your GHC 50 instrument and GPSMAP chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.

General
Dimensions (WxHxD)	Horizontal Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm) Vertical Flush mount: 1.6” x 6.2” x 0.28” (40.1 x 157.0 x 7.0 mm) Surface mount: 1.6” x 6.2” x 0.65” (41.1 x 158.0 x 16.4 mm)
Weight	Horizontal: 4.09 oz (116 g) Vertical: 3.5 oz (100 g)
Temperature range	From 5° to 158°F (from -15° to 70°C)
Material	Fully-gasketed, high-impact plastic
Water rating	IPX7
Compass-safe distance	4.5” (114 mm)
Powered input	Powered supplied from the NMEA 2000® network

APK 10 autopilot keypad (horizontal or vertical, depending on version selected)
Backbone/drop cable (2 m) and T-connector for the NMEA 2000 Network
Mounting hardware (flush and surface)
Documentation

APK 10 Autopilot Keypad
