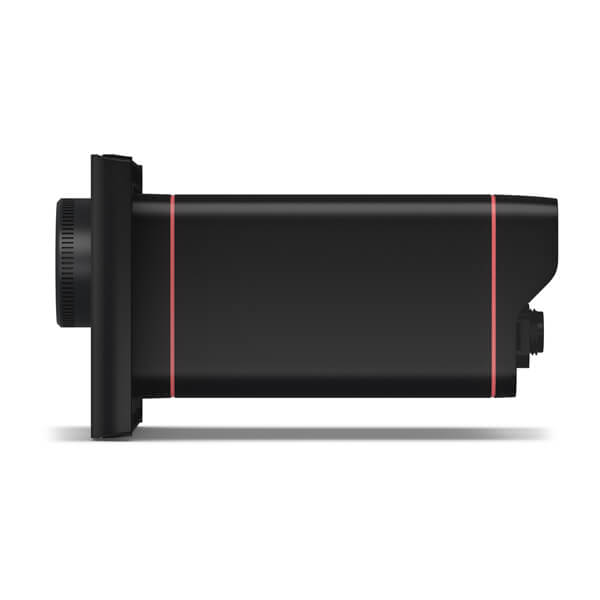

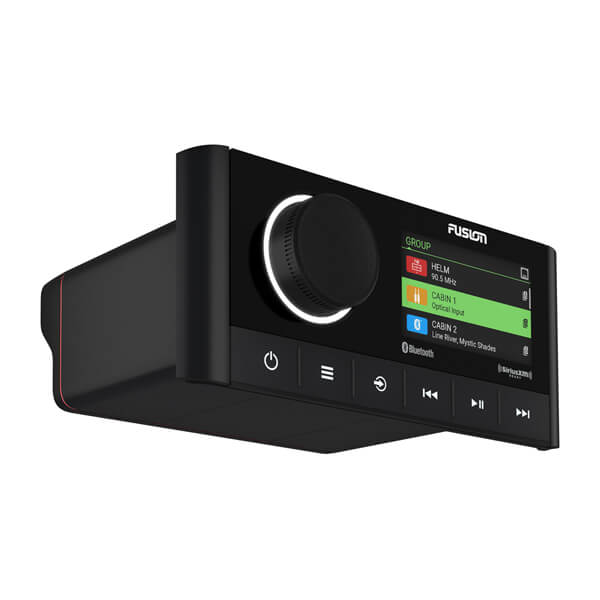

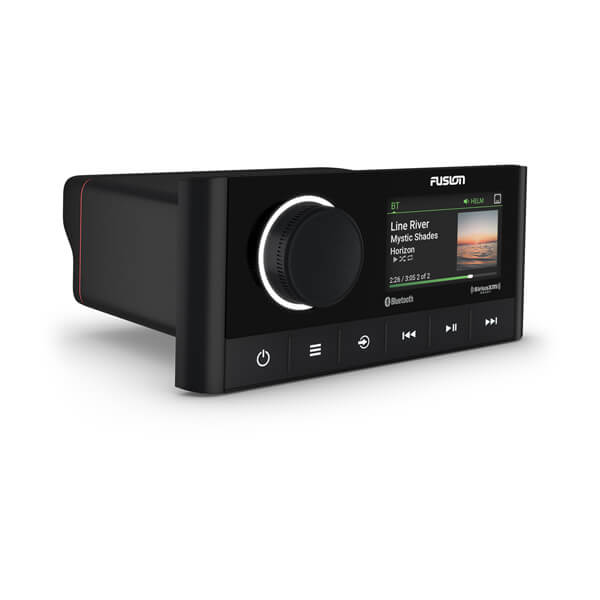

Fusion Apollo RA670

Part Number 010-02138-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

AWARD-WINNING INNOVATION REEMBODIED

The Apollo RA670 marine stereo inherits key audio innovations and revolutionary technology from the award-winning Apollo RA770, reimagined in a compact form factor.

Custom audio profiles for each zone on your boat to deliver superior quality audio.

Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate¹.

Experience seamless high-quality audio streaming from your music app the AirPlay 2 software feature¹.

Enjoy the freedom of musical choice with Fusion’s PartyBus-Network technology¹.

Multi-Zone Technology gives you control of three separate audio zones.

Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.

DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS

Built on the True-Marine design philosophy from Fusion^®, the Apollo RA670 stereo has an IPX6 and IPX7 rated water resistant front panel and has been tested to a high level of protection against salt, fog, temperature, vibration and UV.

MODERN DESIGN AND AESTHETICS

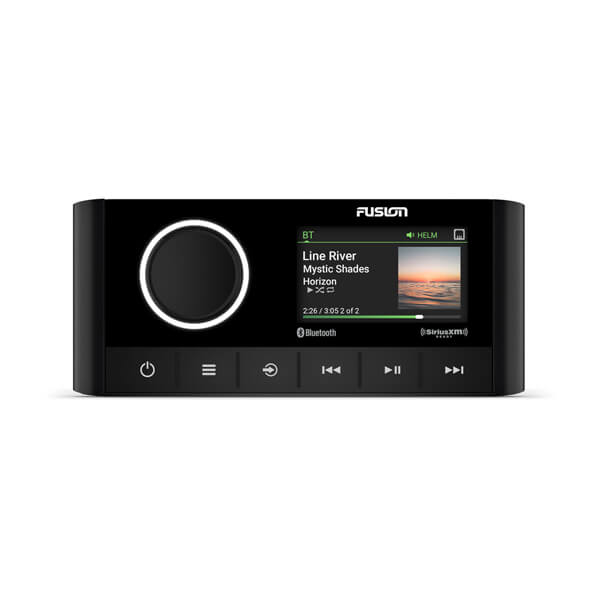

Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.

Superior sound quality in every environment.

FUSION DIGITAL SIGNAL PROCESSING (DSP)

A technically superior listening experience made simple, Fusion DSP optimizes the audio signal delivered to your Fusion system to produce superior sound quality at all volume levels, in every listening environment.

EASY-TO-INSTALL DSP PROFILES

With a few clicks on your compatible smartphone, setting up your DSP profiles is made simple with the free Fusion-Link™ app. You can set up the preconfigured DSP profiles once and enjoy listening to high-quality audio customized for your ears and the environment.

Ethernet for Wi-Fi connectivity.

GAIN WI-FI CAPABILITIES

Connect your Apollo RA670 via Ethernet to a wireless network router, Garmin MFD or Apollo Series stereo network, and enjoy Wi-Fi audio streaming and over-the-air software updates¹.

AUDIO STREAMING WITH WI-FI

In a world-first for marine stereos, enjoy the clarity and premium quality of audio streaming with Wi-Fi technology, including the convenience of AirPlay 2 from Apple^® and universal plug-and-play (UPnP)¹.

OVER-THE-AIR SOFTWARE UPDATES

Updates are now available from your compatible smartphone or device, via the free Fusion-Link app. The Apollo Series is intelligently simple and easy to keep up to date¹.

Enjoy freedom of musical choice across the entire boat.

STEREO GROUPING

Grouping allows you to link up multiple Apollo Series stereos connected to the same network and play the same audio source synchronized across all stereos.

VOLUME CONTROL

Scroll through available zones on your boat, and enjoy independent volume control, or select ALL volume to adjust a group of stereos at once.

POWER OPTIONS

Power options allow you to turn on any connected Apollo Series stereo in standby mode on the Fusion PartyBus-Network remotely from another Apollo Series stereo.

HOME ZONE

Home Zone is the physical zone onboard your boat in which the stereo is installed. After adjusting audio in another zone, the stereo defaults to control of the Home Zone after a period of inactivity.

Enjoy more audio source options than ever before.

FREEDOM OF CHOICE TO LISTEN TO WHAT YOU WANT

Take advantage of the many source options available, including AirPlay 2 feature¹, BLUETOOTH® technology, UPnP¹, optical audio, advanced SiriusXM® features, DAB+ radio, AM/FM radio, AUX and USB connections.

ADVANCED SIRIUSXM FEATURES AVAILABLE

Along with the addition of on-screen album art, a selection of advanced features is now available on SiriusXM.

Enjoy entertainment control with the Fusion-Link™ App

Learn More

Find the right setup with our online system builder.

Learn More

Control your audio directly from an MFD with Fusion-Link wired technology.

Control your audio right from your compatible Garmin watch with the Fusion-Link Lite app.

Learn More

¹Available when connected via Ethernet to a wireless network router (sold separately), Garmin MFD or Apollo Series stereo network enabled with Wi-Fi technology

AirPlay and Apple are trademarks of Apple Inc., registered in the U.S. and other countries. Wi-Fi is a registered trademark of the Wi-Fi Alliance. The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Garmin is under license. Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio Inc.

General
Dimension	6.18" x 2.68" x 4.83" (157 x 68 x 123 mm)
Weight	1.65 lbs (750 g)
Water rating	IPX6 and IPX7 (front panel only, when properly installed)
Display	2.7" optically bonded color LCD
Operating temperature	32° to 122° F (0° to 50° C)
Current (max)	15 A
Networking
NMEA 2000® LEN	1 (50 mA)
BLUETOOTH® wireless range	up to 30 ft (10 meters)
ANT® wireless range	Up to 10 ft (3 meters)
Wireless frequencies/protocols	BLUETOOTH®: 2.4 GHz @ +13.29 dBm nominal ANT®: 2.4 GHz @ +6.92 dBm nominal
Audio
Amplifier	Class-D (2 ohm stereo-stable)
Electrical Features
Power Input	10.8 - 16 VDC
Compass safe distance	7.87" (200 mm)
Stereo Features
Peak power	280 W
Rated power output (2 ohm)	43 watts RMS x 4 @ 14.4 V input < 10% THD
Rated power output (4 ohm)	26 watts RMS x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing (DSP)	yes (with custom DSP profile setup using Fusion-Link™ app)
PartyBus™-network capabilities	yes (wired)
Fusion-Link™ control	yes (MFD, smart device and Garmin watch)
Multi-Zone™ technology	3 zones
BLUETOOTH® wireless technology
ANT® wireless technology
SiriusXM-ready
DAB+ ready
Optical audio input
Supports ERX wired remote
Supports NRX wired remote
Multi-language interface	Bulgarian, Chinese (Simplified), Chinese (Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazil, Portuguese-Portugal, Slovenian, Spanish, Swedish, Thai, Turkish
Software updates	Over-the-air updates via Fusion-Link™ app / USB
Warranty	3years
Sources
Supported sources	AM, FM, BLUETOOTH^®, Apple^® AirPlay® 2, digital optical input, USB audio, iPhone^®, iPod^®, AUX x1, UPnP, MTP SiriusXM-Ready (U.S. only, requires optional SiriusXM Connect vehicle tuner) DAB+ ready (available in Europe and Australia only)
Connections
Auxiliary inputs (RCA)	1
Optical audio inputs (Digital Optical Input SPDIF)	1
Ethernet ports	1
NMEA 2000® ports	1
USB 2.0 ports	1
SiriusXM ports	1
AM/FM ports (Motorola antenna connector)	1
Speaker connections	4 (2 zone amplified)
RCA pre-out (left, right and subwoofer)	3 zones (requires external amplification)
Line out	3 (L + R per zone, requires external amplification)
Subwoofer out	3 (1 mono output per zone, requires external amplification)

General
Physical dimensions	Stereo dimensions (H x W x D): 2.68" x 6.18" x 4.83" (68 x 157 x 123 mm)
Weight	26.5 oz (750 g)
Water rating	IPX6 and IPX7 (Front panel only, when properly installed)
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	15 A
NMEA 2000 LEN	1 (50 mA)
Bluetooth wireless range	Up to 30 ft (10 meters)
ANT wireless range	Up to 10 ft (3 meters)
Wireless frequencies/protocols	Bluetooth 2.4 GHz @ +13.29 dBm nominal ANT 2.4 GHz @ +6.92 dBm nominal
Compass-safe distance	7.87" (200 mm)

Stereo Features
Display	2.7" optically bonded color LCD
Built-in amplifier	Class-D (2 Ohm stereo-stable)
Peak power	280 W
Rated power output (2 Ohm)	43 W rms x 4 @ 14.4 V input < 10% THD
Rated power output (4 Ohm)	26 W rms x 4 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing	yes (with preconfigured DSP profiles)
PartyBus™-Network capabilities	yes (wired)
Fusion-Link™ control	yes (with MFD, smartphone and Garmin watch)
Multi-Zone™ technology	3 zones
Bluetooth wireless technology	yes
ANT wireless technology	yes
SiriusXM-ready	yes (requires SiriusXM Connect vehicle tuner)
DAB+ ready	yes (requires DAB100A antenna module)
Optical audio input	yes
NRX remote compatibility	yes
Software updates	Over-the-air software updates via the Fusion-Link app*, USB
Warranty	3 years

Sources
Sources	AM / FM / Bluetooth / Apple AirPlay 2* / digital optical input / USB audio / iPhone / iPod / AUX x1 / UPnP* / MTP / SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner) / DAB+ ready (available in Europe and Australia only)

Connectivity
Auxiliary input	One RCA input (AUX)
Optical audio input	One digital optical input (SPDIF) port
Ethernet	One Ethernet port
NMEA 2000	One NMEA 2000 port
USB 2.0	One USB 2.0 port
SiriusXM satellite radio	One SiriusXM port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio	One Motorola antenna connector port
Speaker	4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer)	3 zones (requires external amplification)
Line out	3 (1 x L + R per zone, requires external amplification)
Subwoofer out	1 x mono output (requires external amplification)

*Available when connected to a wireless network router or Apollo Series stereo network enabled with Wi-Fi® technology

Fusion MS-RA670 marine stereo
Mounting gasket
Four 8-gauge, self-tapping screws
Two screw covers
Power and speaker wiring harness
Auxiliary-in, line-out, and subwoofer-out wiring harnesses
Dust cover
6 ft (2 meter) NMEA 2000 drop cable
Documentation
