ECHOMAP UHD 72cv

Part Number 010-02333-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

JOIN THE CLUB. FIND MORE FISH.

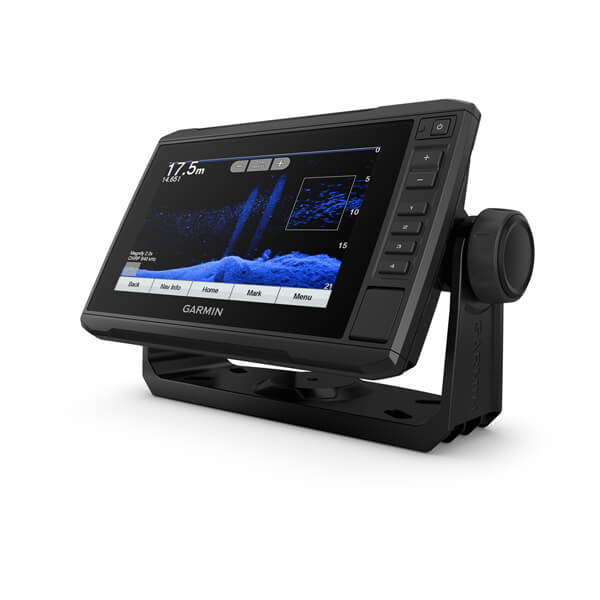

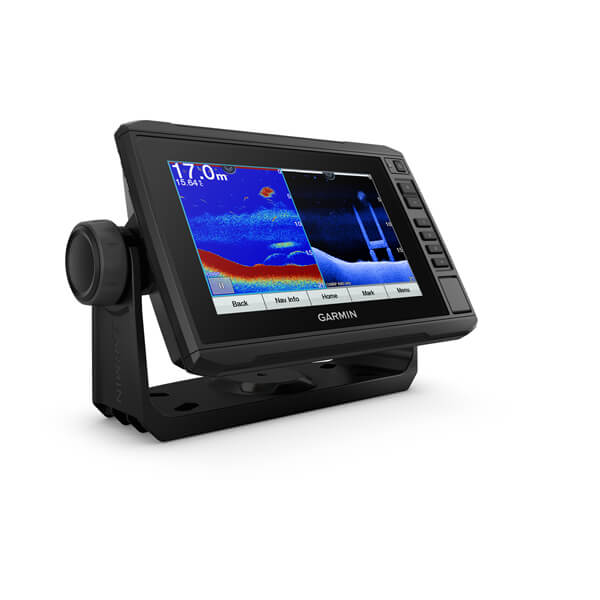

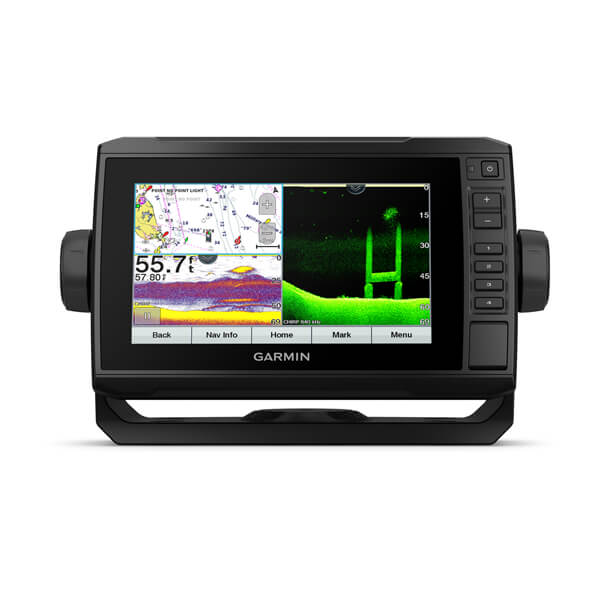

TThe sunlight-readable 7” touchscreen chartplotter features a quick-release bail mount, and the transducer bundle adds Ultra High-Definition scanning sonar and CHIRP traditional sonar.

See below your boat in incredible detail with optional transducer

Navigate any waters with optional charts and maps

Share data with other devices on your network (7” and 9” models only)

Manage your marine experience from nearly anywhere

Control the most powerful trolling motor available

Create your own maps on the fly and tailor them to fit your needs

Take fishing to the next level.

SONAR SUPPORT

This chartplotter supports a variety of Garmin transducers (sold separately), including the Panoptix LiveScope™ scanning sonar system, which lets you see all around your boat in real time.

OPTIONAL TRANSDUCER BUNDLE

Select the transducer bundle to add a GT24 transducer for Ultra High-Definition ClearVü scanning sonar, which shows you a crystal-clear image below your boat. Plus, you get Garmin high wide CHIRP traditional sonar for remarkable target separation.

OPTIONAL CHARTS AND MAPS

Experience unparalleled coverage and detail with support for optional BlueChart® g3 Vision coastal charts featuring integrated Garmin and Navionics® content.

QUICKDRAW CONTOURS

Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.

Boat connected.

NETWORK CAPABLE

If you have multiple compatible ECHOMAP UHD or ECHOMAP Ultra devices on your boat, you can share information — such as sonar, user data and charts — among them (7” and 9” models only).

NMEA 2000® AND NMEA 0183 NETWORKS

Connect to autopilots, digital switching, weather, FUSION-Link™ audio system, media, VHF, AIS and more from one screen.

ACTIVECAPTAIN® APP

Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications¹, software updates, Garmin Quickdraw™ Community data and more.

FORCE™ TROLLING MOTOR COMPATIBILITY

Take control of the most powerful and efficient trolling motor available², route it to waypoints, follow tracks and more from the screen of your chartplotter.

ENGINE CONNECTIVITY

Connect this chartplotter to different kinds of engines — including select Mercury and Yamaha® models — to see RPMs, fuel flow, temperature, trim and other important information at a glance. You may need additional hardware, so be sure to check with your engine manufacturer.

See Everything with Ultra High-Definition Scanning Sonar System

Manage Your Marine Experience Using The Free ActiveCaptain® App

Learn More

Powerful. Efficient. Quiet. Force™ Trolling Motor

Learn More

¹When paired with a compatible smartphone

²In compliance with ISO standard 13342

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Purchase New Charts

General
Dimension	9.8" x 5.5" x 2.0" (25 x 13.9 x 5.1 cm)
Weight	1.7 lbs (0.77 kg)
Waterproof	IPX7
Touchscreen
Display Type	WVGA, NP
Display Size	6.1" x 3.4"; 7.0" diagonal (15.5 x 8.6 cm; 17.8 cm diagonal)
Display Resolution	800 x 480 pixels
Mounting Options	Bail or flush
Input	Touchscreen with Keyed Assist
Maps & Memory
Accepts Data Cards	1 microSD card; 32 GB maximum size
Waypoints	5000
Track points	50,000
Tracks	50 saved tracks
Navigation Routes	100
Sensors
GPS
Has built-in receiver
Receiver	5 Hz
NMEA 2000 Compatible
NMEA 0183 Compatible
Supports WAAS
Built-in Maps
Tide tables
Optional Map Support
BlueChart g3
BlueChart g3 Vision
LakeVü g3
LakeVü g3 Ultra
Garmin Navionics+™
Garmin Navionics Vision+™
Standard Mapping
Garmin Quickdraw Contours
Chartplotter features
AIS
DSC
Supports Fusion-Link™ compatible radios
ActiveCaptain® compatible	yes
Wireless Remote Compatible
Sailing Features
Electrical Features
Power Input	9 to 18 Vdc
Typical current draw at 12 Vdc	0.8 A
Maximum current draw at 12 Vdc	1.25 A
Maximum power usage at 10 Vdc	15W
Sonar Features
Displays sonar
Power output	500 W
Traditional sonar (dual frequency/beam)	built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü	built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

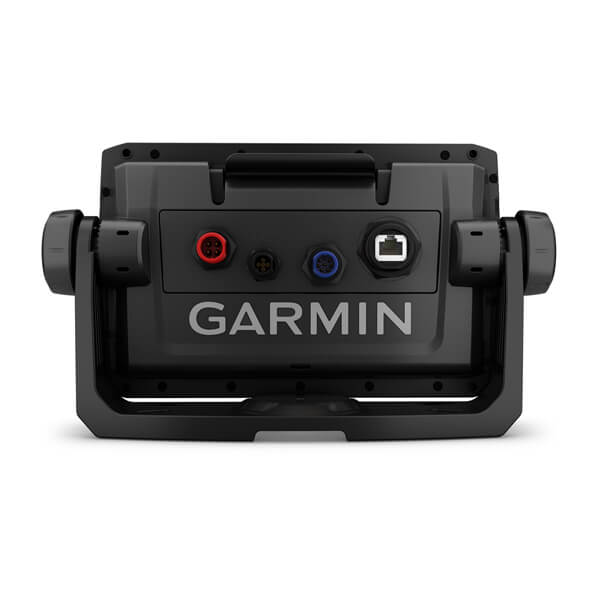

Connections
NMEA 2000® ports	1
Connections NMEA0183 Input Ports	1
NMEA 0183 output (Tx) ports	1
Garmin Marine Network Ports	1 Panoptix™ port
8-pin transducer ports	1

With Transducer

ECHOMAP UHD 72cv with worldwide basemap
GT24UHD-TM transducer
Power/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation

Without Transducer

ECHOMAP UHD 72cv with worldwide basemap
Power/data cable
Tilt/swivel mount with quick release cradle
Flush mount
Protective cover
Hardware
Documentation
