Garmin USB Card Reader

Part Number 010-02251-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

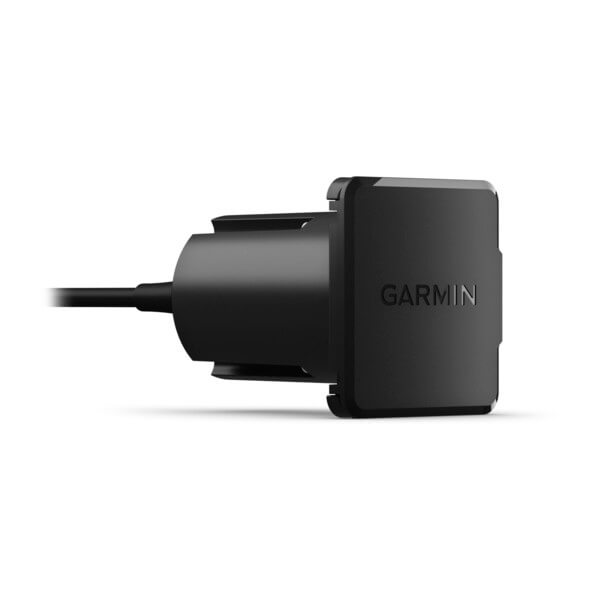

Save space on your helm with the compact, water-resistant SD™ card reader. It holds two full-size SD cards for quick access to charts, software updates and ActiveCaptain^® data.

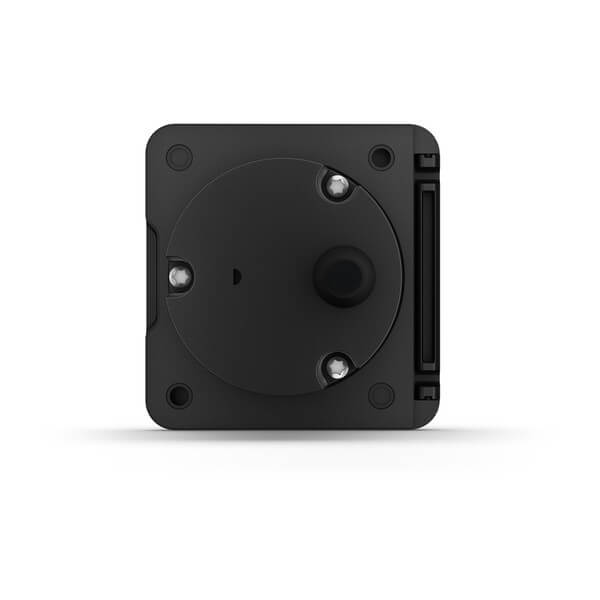

Featuring a 2”x 2” footprint, flush mounting and USB connection to the back of your chartplotter, this card reader easily integrates into a crowded dash or elsewhere at the helm.

Dimensions (W×H×D): 2” x 2” x 2.4” (excluding the cable)
Weight: 4.025 oz
Temperature range: -15C to 70C
Material: fully gasketed, high-impact plastic, waterproof to IPX7 standards
Input power: 4.75V – 5.25V
Maximum power usage at 10 Vdc: 2.5 W
Typical current draw at 12 Vdc: 100 mA
Maximum current draw at 12 Vdc: 500mA
Compass-safe distance: 21" (533 mm)

Garmin USB card reader
Mounting hardware
Power cable
Documentation
