Fusion NRX Wired Remote With NMEA 2000

Discontinued

Part Number 010-01628-00

BUY NOW

Feature
Specs
In The Box
Update
Accessories

TAKE CONTROL OF YOUR AUDIO ENTERTAINMENT

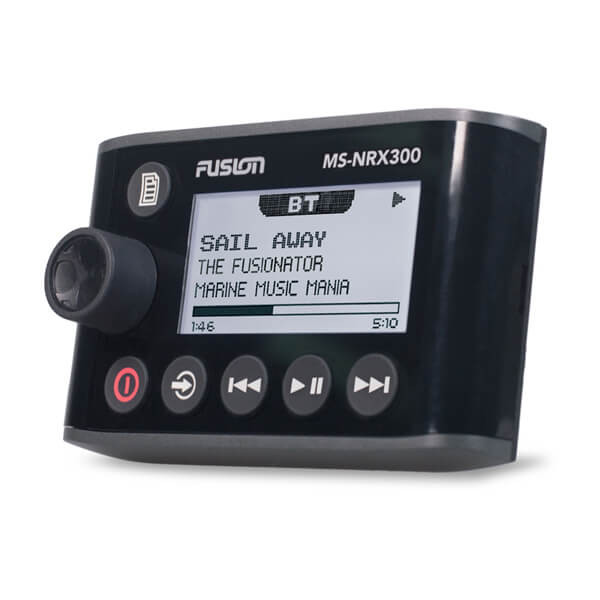

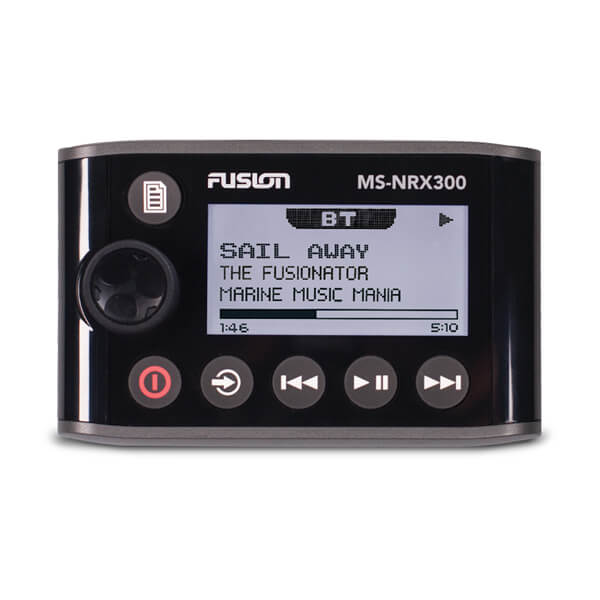

A perfect solution for audio control, the Fusion NRX300 wired remote allows you to enjoy localized audio control from any audio zone¹ on board your boat.

Optically bonded monochrome LCD allows for easy navigation.

Quick and simple to install with plug-and-play setup.

Install with a conventional flush mount or integrate into the helm with a premium flat finish.

Marinized NMEA 2000® Wired Remote

DESIGNED AND ENGINEERED TO TRUE-MARINE^™ STANDARDS

Built on the True-Marine design philosophy from Fusion, the MS-NRX300 remote is IPX7 rated and has been tested to a high level of protection against salt fog, temperature, vibration and UV.

NMEA 2000 REPEATER

Connect the MS-NRX300 remote to your boat’s existing NMEA 2000 network and display data from your compatible marine electronics including wind data, depth, speed, heading, position, ETA and water temperature.

MULTI-ZONE^™ TECHNOLOGY

The MS-NRX300 remote can control up to four audio zones¹ on board your boat with localized volume control and global source selection – allowing you to customize your onboard audio entertainment experience.

Apollo™ Series – Award-winning audio innovation reimagined.

Learn More

Fusion RA210 – Compact marine stereo

Learn More

Fusion RA70 Series – Din-sized marine stereos

Learn More

¹Number of zones dependent on your onboard Fusion entertainment system

General
Physical dimensions (HxWxD)	2.76"; x 4.33"; x 1.97"; (70 x 110 x 50 mm)
Water rating	IPX7
Power input	10.8-16 VDC
Operating temperature range	32° to 122° F (0° to 50° C)
Current (max.)	110 mA at 12 VDC

Remote Features
Display	2.6"; optically bonded monochrome LCD
Supported NMEA 2000 PGN data	127250 - Heading sensor reference (true, magnetic) 128259 - Water speed reference (paddle wheel, pitot tube, doppler log, correlation log, electromagnetic log) 128267 - Water depth (offset add or subtract) 129025 - Position (latitude and longitude) 129026 - Course Over Ground (COG) and Speed Over Ground (SOG) [COG reference true, magnetic] 129029 - Global Navigation Satellite System (GNSS) position data 129284 - Navigation data (ETA) 130306 - Wind data reference (apparent wind relative to the vessel centerline) 130310 - Water temperature and air pressure 130311 - Water temperature and air pressure 130312 - Temperature and temperature source (sea temperature)
Warranty	3 years

Connectivity
NMEA 2000	1 port

NRX300 wired remote
Mounting gasket
Four 8-gauge, self-tapping screws
Two screw covers
20 ft (6 meter) NMEA 2000^® drop cable
NMEA 2000 T-connector
NMEA 2000 female terminator
NMEA 2000 inline terminator
Dust cover
Documentation
