Transom Mount Transducer with Depth & Temperature, 4-pin (Dual Beam) - Garmin Design | Marine

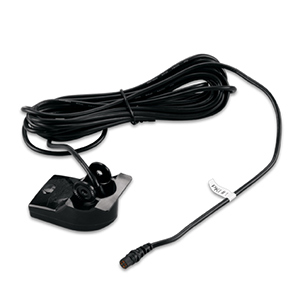

Transom Mount Transducer with Depth & Temperature, 4-pin (Dual Beam) - Garmin Design

Part Number 010-10249-20

BUY NOW

Feature
Specs
In The Box
Update
Accessories

This dual beam transducer replaces the one included with your echo™ or STRIKER™ series fishfinder. A 500 W 4-pin transducer, it has an operating frequency of 77/200 kHz; a beamwidth of 45/15 degrees; and mounts on a 0 to 70 degree transom.

All Wearables & Smartwatches
Outdoor Watches
Running Watches
Multisports & Triathlon Watches
Diving Watches
Swimming Watches
Golf Watches
Watches for Women
Fashion & Hybrid Smartwatches
Fitness & Health Tracking Watches
Watches with Music
Watches for Kids
Marine Watches
MARQ Luxury Watch Collection
Discontinued

Transducer kit comes with installation instructions. Follow the instructions carefully to avoid damaging your boat.

General
Transducer frequency	77/200 kHz
Transducer power	500 W
Transducer beamwidth	45°/15°
Transducer maximum depth	1,900 ft.
Transducer cable length	30 ft.
Transducer depth/speed/temperature	Depth and Temperature
Transducer number of pins	4-pin
Transducer supported deadrise/transom angles	0°-70° degree transom
